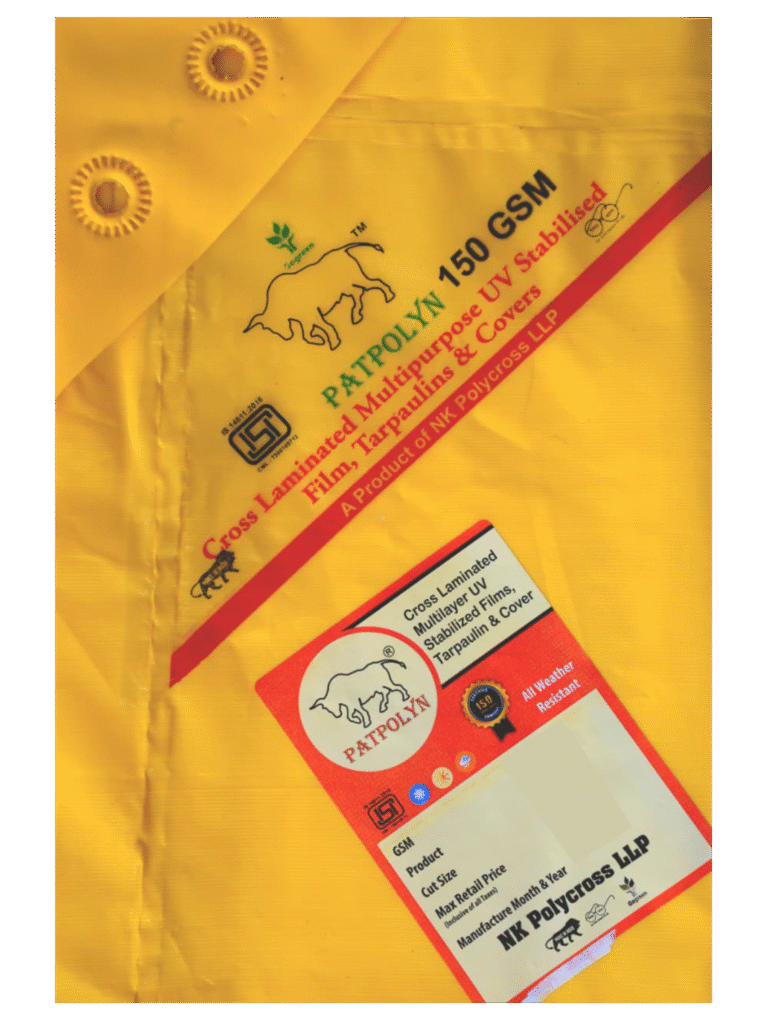

Premium Multilayer Cross Laminated Tarpaulin

Premium Strength • Long Life • All-Weather Protection

Our Multilayer Cross Laminated Tarpaulin is engineered with advanced cross-lamination technology, delivering superior strength, tear resistance, and long-lasting durability. Designed to withstand harsh weather, heavy loads, and demanding industrial conditions, it provides reliable protection for multiple applications across various sectors.

Advance Super Cross Laminated Multilayer Tarpaulin.

Introducing Cross Laminated Tarpaulin : A cuttingedge, super cross-laminatedmulti-layered tarpaulin. This unique tarpaulin stands out for its exceptional strength and durability when compared to conventional cross-laminated multilayer tarps. Cross Laminated Tarpaulin emerges as the industry’s most robust tarpaulin solution. Its versatility extends to applications in farming, construction, transportation, agriculture, aquaculture, fumigation sheets, dunnage sheets, and beyond. Experience the strength that sets Cross Laminated Tarpaulin apart across various industries.

Benefits:

Built Strong. Lasts Long.
Protection That Never Fails.
All-Weather. All-Purpose.
Engineered for Tough Conditions.

Stronger Than Ordinary Tarpaulins.
Designed for Durability.
Premium Strength. Proven Performance.
Easy to fold, carry, and install

Powerful Attributes of Cross Laminated Film

Larger Area Coverage.
As per IS 14611-2016 standards.
100% recyclable, hence eco friendly.
Heat sealed joints guarantee NO leakage.
Customized to suit diverse industry needs.
Light weight, Easy to handle, transport and use.
Unmatched strength, Offers the assurance of 100% waterproofing.

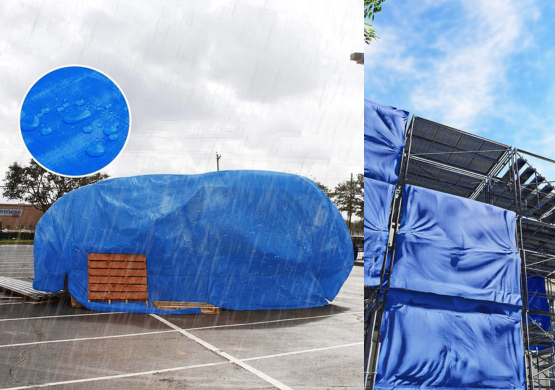

All-weatherproof, with the ability to withstand tough climatic extremes.

Especially UV treated to resist radiation, and inert to most chemicals and acids.
High elongation and flexibility enable it to be draped over odd shaped objects.
Supplied tailor-made integrated machine covers ranging up to 70 feet in length.
Excellent tensile strength. Tear and puncture resistance – can withstand the impact of sharp edges and blunt objects.
Supplied in customized sizes, thickness and colors. Films up to 300 GSM thickness and up to 9 feet in seamless width can be ordered.

Availability of Cross Laminated Film

Thickness: Films made in 70, 90, 120, 150, 200, 250 and 300 GSM.
Sizes: Film made in 4ft to 9ft width can be fabricated to a custom made size as per customer’s requirement
Colors: Any color, our standard colors are Blue/Yellow /Black-Silver/Natural/Army Green

Cross Laminated Advantages

COMPARATIVE STATEMENT OF MULTILAYERED CROSS LAMINATED U.V. STABILISED FILM WITH OTHER PLASTIC COVERING.

SR. NO.:	CROSS LAMINATED	OTHER PLASTIC COVERING
1	As per IS:14611:2016	As per IS:7903
2	Multilayered cross Laminated U.V. Stabilised Plastic Tarpaulin have desired mechanical properties like Tear. Tensile, Impact strength and 100% waterproofing properties in the basic material itself.	These Coverings are not waterproof as the functional life of this product depends directly on the secondary agent which is laminated on it to make it waterproof.
3	U.V. Stabilised to enhance the exposed life, as a result it remains flexible and lasts for a much longer period.	As the laminated agent being very thin it is not efficiently U.V. Stabilized and gets degraded faster.
4	Fusion Welding is done by Automatic Sealing Machine on Cross Laminated to have more stronger joints.	Normally, this is not available with heat sealed joints and even when it is, the joints are not strong and hence it tends to come off after a little while. The sealing is done on the thin laminated film and not on the entire thickness. Hence, the sealing is weak and tends to open at the seal. It also comes with stitched joints and water tends to leak through such joints.
5	After use it can easily be folded and stored. The handling is also easy in view of its light weight.	After initial exposure under the sun it tends to crack and ultimately result in delamination when folded for storage purpose.
6	The thickness is indicated in GSM (Gram Per Square Meter) and the maximum variation is ± 10%.	The variation goes up to ± 20%.

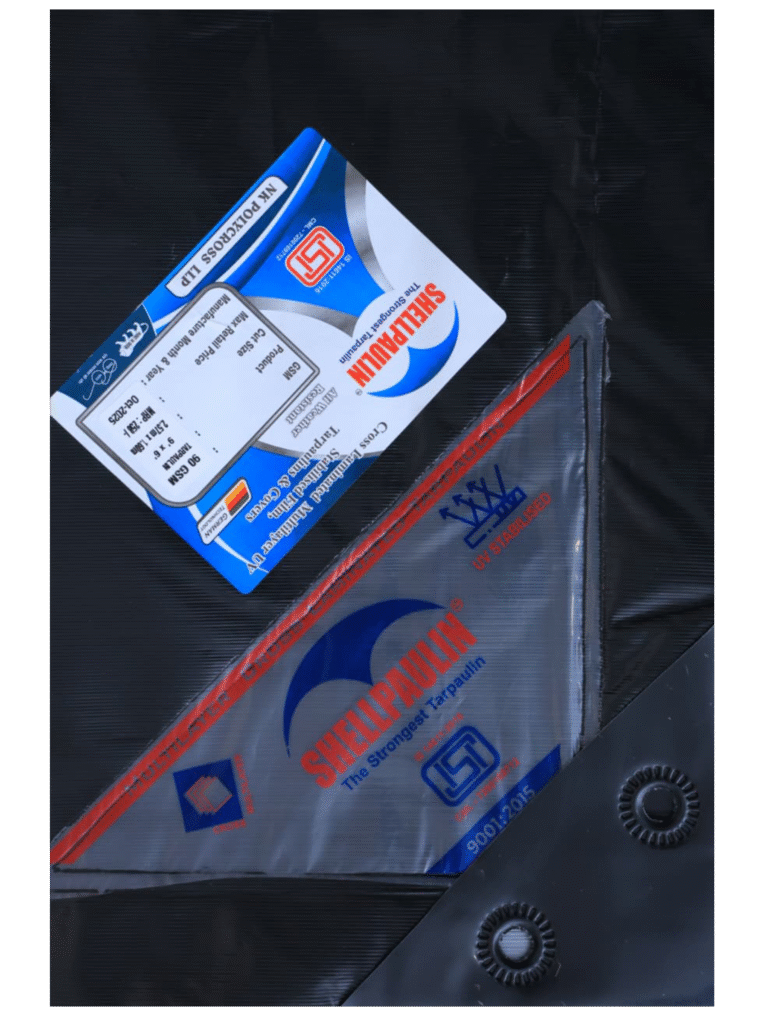

7	Cross Laminated comes with ultrasonically plastic welded eyelets which forms integral part of the Tarpaulin itself.	Normally, this product comes with riveted eyelets which peels off after a specific pressure is applied.
8	100% Waterproof forever.	May be waterproof, but for a very short period.

Physical Properties Performance

Characteristic (UOM)	Test Method	Minimum Text Value
Characteristic (UOM)	Test Method	XLN	LN	MN	HN	XHN
Mass Per Unit Area (GSM)	7016 Part-1	35, 55, 60	70	120	200	300
Tensile Strength at Break LD (Kg/Cm2)	IS:13360	>250	>250	>250	>250	>250
Tensile Strength at TD (Kg/Cm2)	IS:13360	>200	>200	>200	>200	>200
Elongation at Break LD (%)	IS:13360	>300	>400	>400	>400	>400
Elongation at Break TD (%)	IS:13360	>250	>300	>300	>300	>300
Tear Strength (Elmendorf) LD (Gram)	IS:14611, Annex F	>650	>1200	>2080	>3200	>4000
Tear Strength (Elmendorf) TD (Gram)	IS:14611, Annex F	>450	>900	>1600	>2800	>3500
Free Fall Dart Impact (Gram)	IS:13360	>100	>250	>400	>700	>800
AcceleratedUVResistance – After 192 Hrs of Aging (%)	IS:14622, AnnexG	70% to 50% from the Original Strength
Definition	LD-LongitudinalDirection alsoKnownasMD-MachineDirection TD- TransverseDirectionalsoknownasOD–ppositeDirection

Agricultural / Horticultural Applications

Azolla Farming Sheets
Portable Garden Beds
Plant Protection Sheets

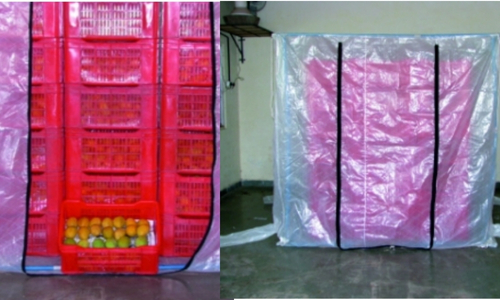

Fruit Ripening Chambers

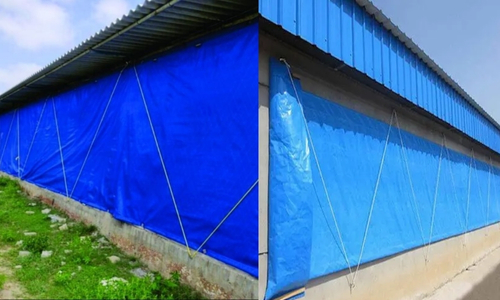

Poultry Curtains And Roofs
Silage Urea Enrichment Bags

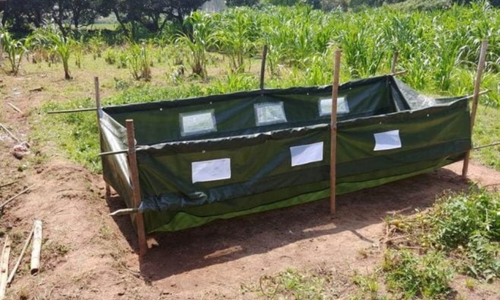

Portable Vermi Compost Beds
Floor Underlays (Dunnage Sheets)

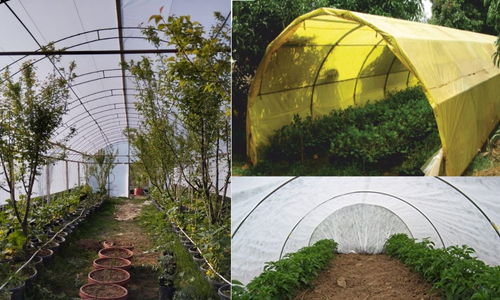

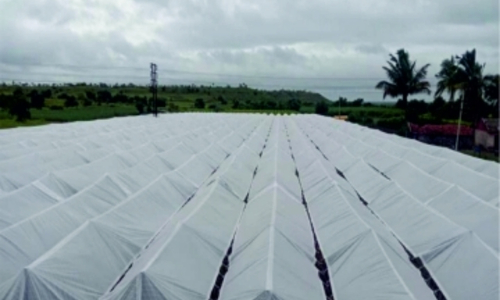

Green House/ Low Tunnels/ Nursery Sheds/ Aprons
Portable Silpaulin Plant Nutrition Bed (Hydro Phonics)

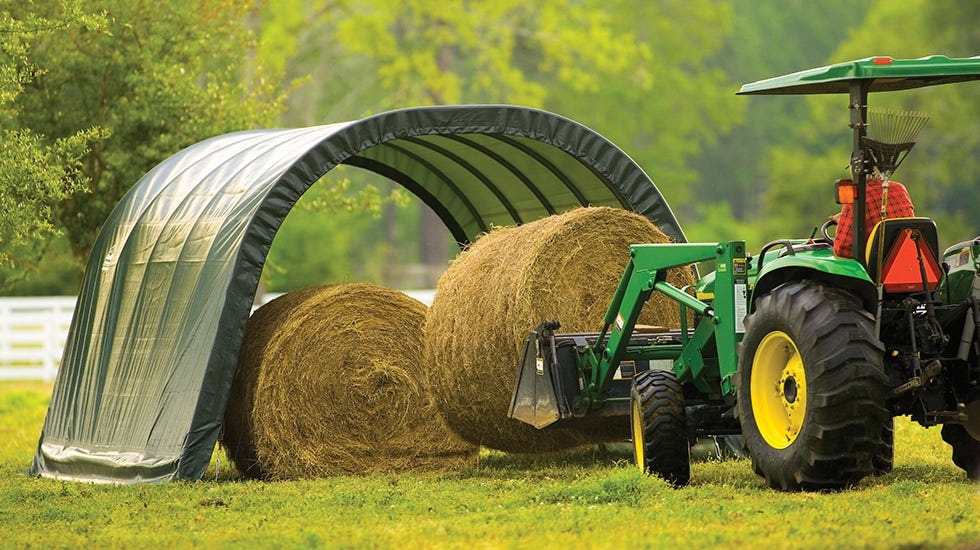

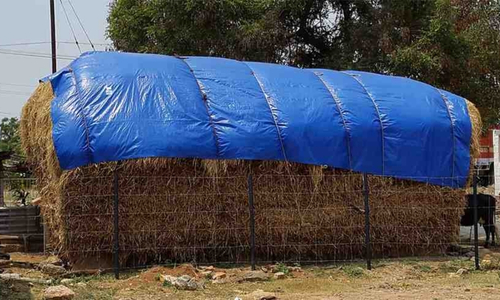

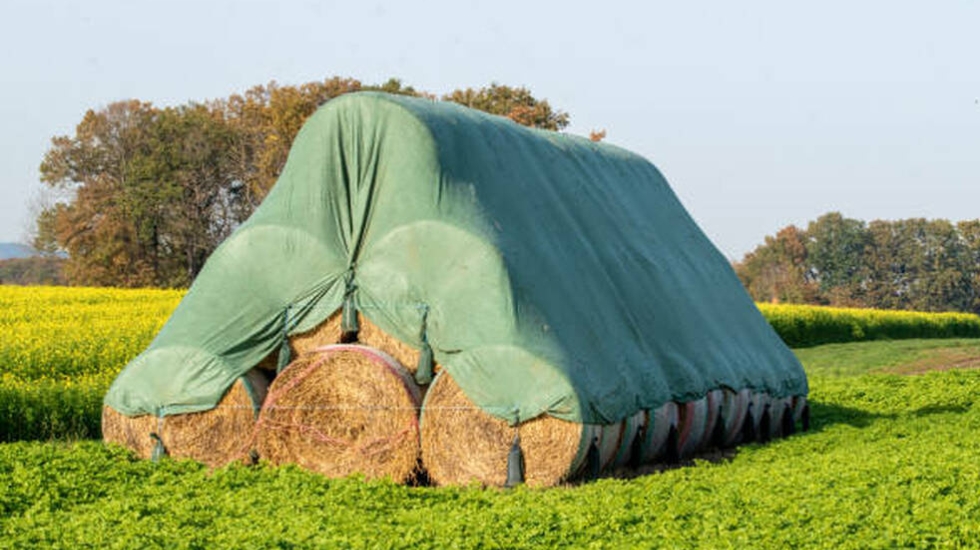

Covering Of Agricultural Produce (Pre & Post) Harvest Sheets

Covering Of Tendu Leaves, Tamarind, And Other Forest/ Hill Produce

Fumigation Of Tobacco Leaves Food Grains, Grapes And Other Agricultural Produce

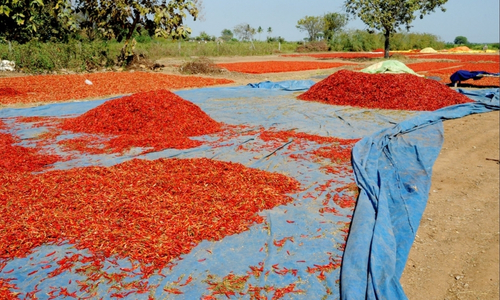

Dying Of Spices, Areca Nuts, Coconut, Rubber, Chilliest Turmeric, Grapes (Rasin) And Other Agricultural Produce

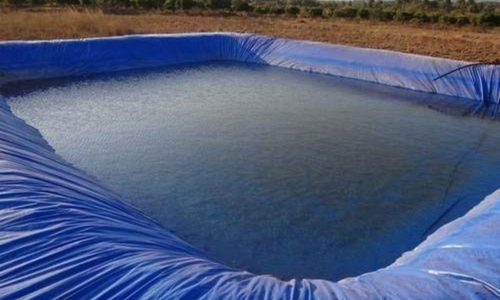

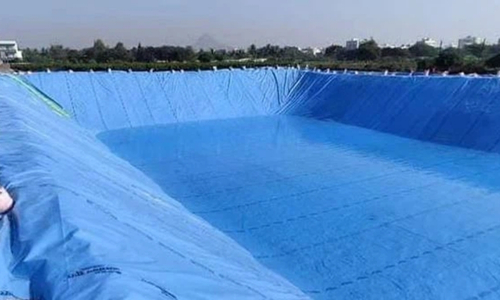

Farm Ponds / Pond Lining / Fresh Water Ponds / Fish Ponds / Raw Water Reservoirs / Jalkundh / Community Water Tank/Portable Water Tank/Diggi/Canal Lining Etc

Construction & Civil Engineering Applications

As Raft Underlay
As Floor Underlay
Terrace Graden Underlay
As Parking Floor Underlay
As Column Footing Underlay

Basement Capping/ Swimming Pool Capping
SLIP-MEMBRANE For Concrete Roads And Runways
Lining For Large Water Bodies/ Raw Water Reservoirs/ Ponds
Side Curtain For Retaining Walls, Terrace / Podium Waterproofing, Lining For E TP’s / Waste Pits /
Sludge Ponds Etc.

Packaging Applications

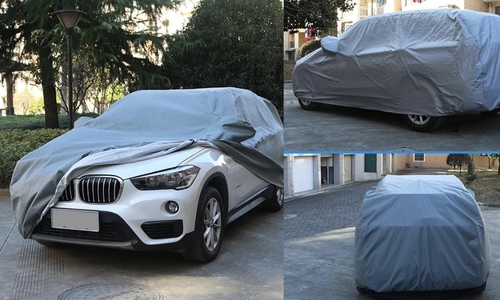

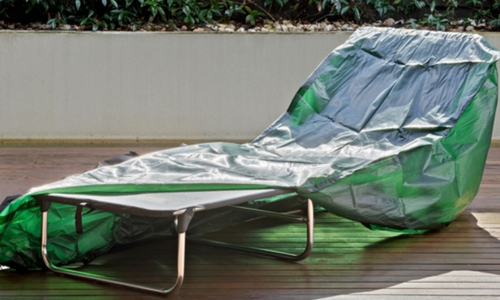

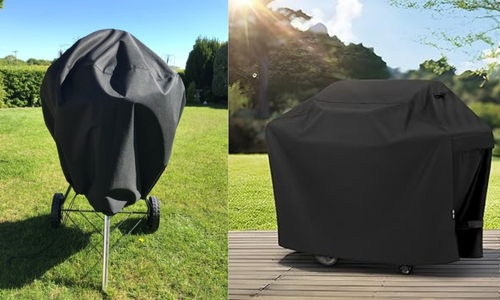

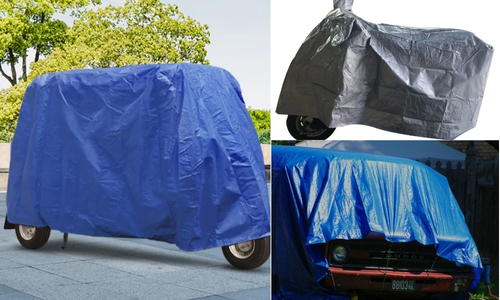

Machine Covers
FlexiContainer Liners
Shipping Bags & Drum Liners
Industrial Transport Packaging

Packing& Covering Of Industrial Products
Jumbo Bags For StoringOf Industrial Raw Material
PackingOf Heavy Project/ ODC (Over Dimension Cargo)
PackingOf Consignment, Inner Liner For Corrugated Boxes

General Applications

Hanger Covers
Privacy Walls, Camping Tents
Protection For Transit Material
ScaffoldingAt Construction Sites Etc…
CoveringOf Raw Bricks, Cement Etc…
Truck/ Tempo/ Tractor Trolly Cover/Sheet
Covering For Pandals, Monsoon Shed, Mandaps Etc…
Shed Covers Offering Protection Against Sun/ Rain/ Dew/ Dust

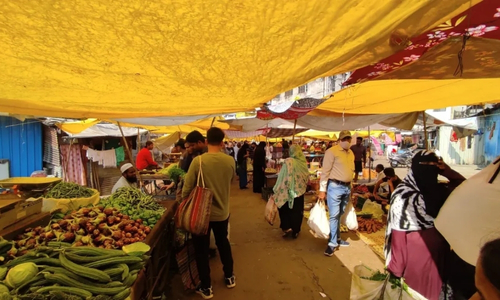

Shelter For Poor People/ Temporary Shelter For Hawkers, Fruits / Vegetable Vendors

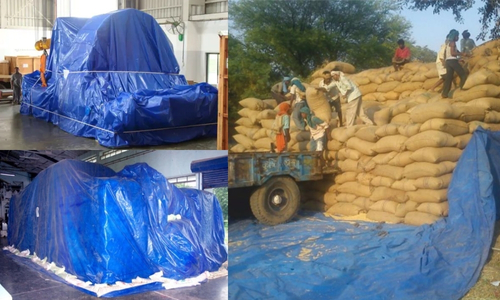

Covering Machinery, Raw Materials, Packing Materials, Finished Products, And Paper Cartons

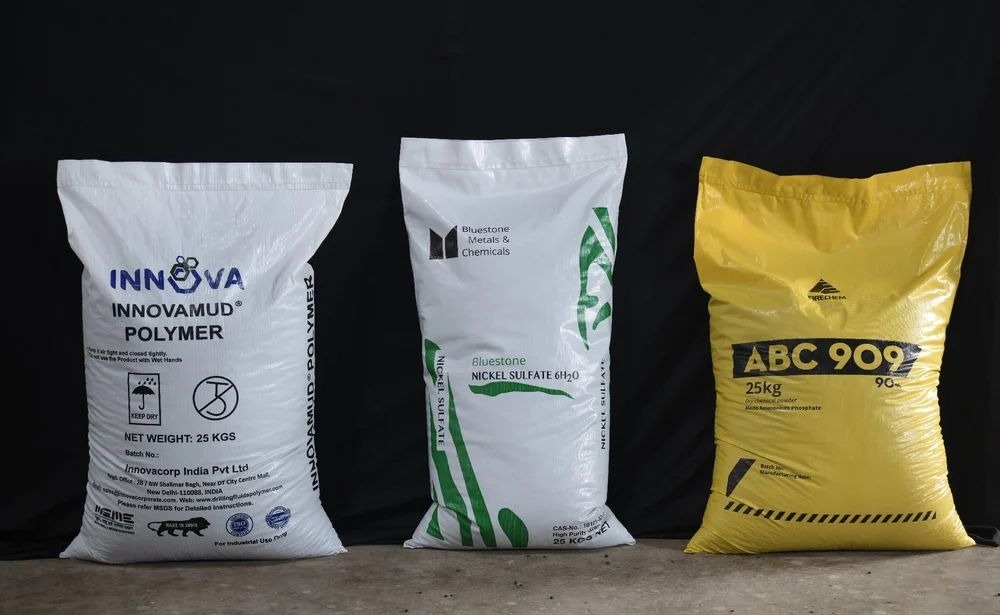

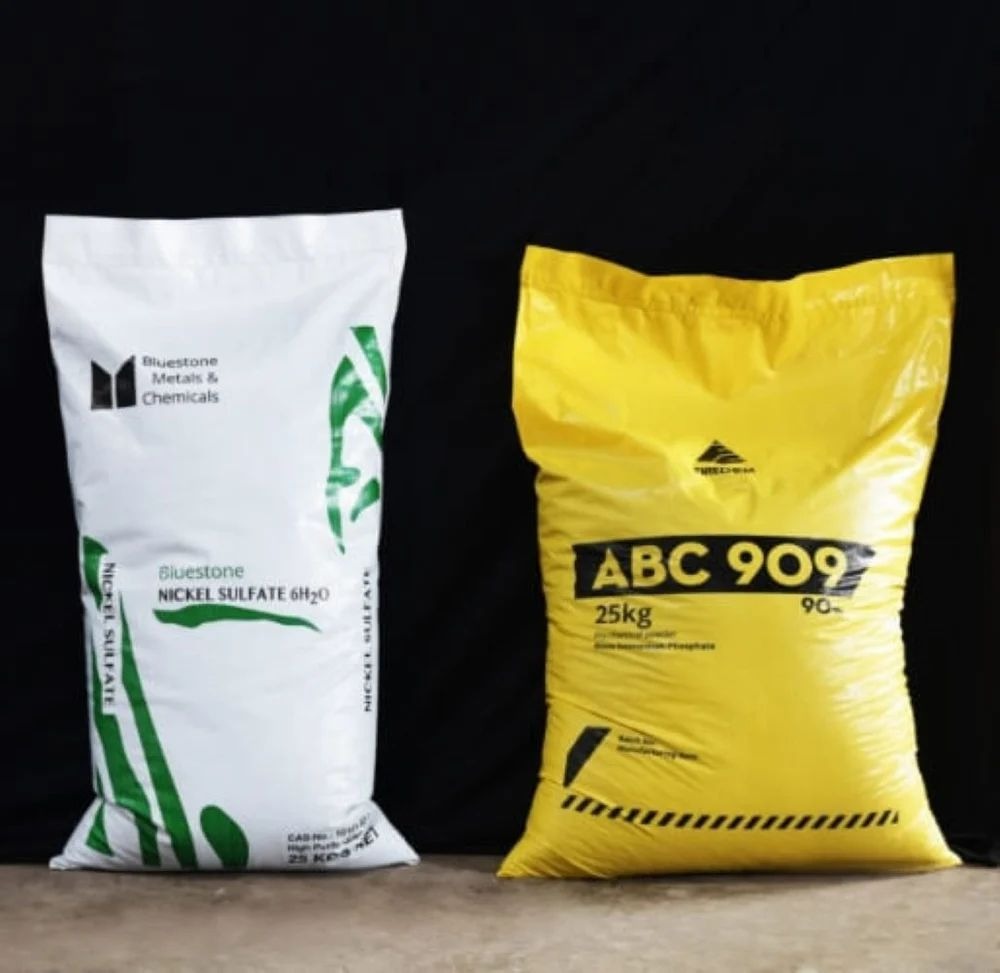

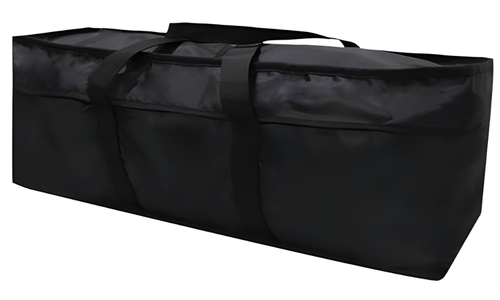

Shipping Bags

Types of bags manufactured:

Valve type Bags.
Open Mouth pillow type Bags.
Flat Bottom Open Mouth Bags.

The sacks are made in 70, 90, 120 & 150 GSM

recommended for packing products up to 25 Kgs.

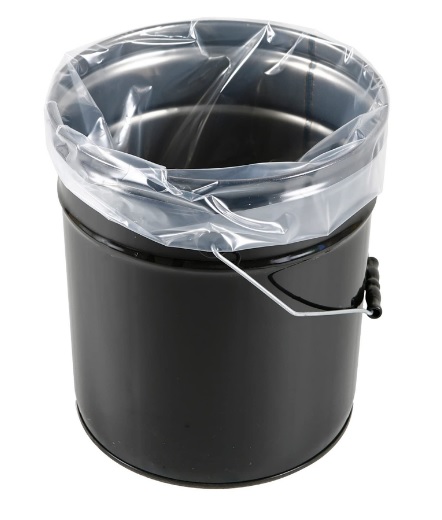

Drum Liners

XF Film is used as Drum Liner for packing grease, Paint, Chemicals etc. The drums used are open mouth, having capacity of 55 Ib and 440 lb.

Unique Features:

Puncture Resistant.
Light Weight – easy to handle & install.
Economical – saves time & labour – no drum clean-ips.
Stop external surface contamination of the product.
Entire quantity of the product packed can be taken out of the drum without wastage.
